# Form

The Form Widget is a widget used to create forms within the application, featuring various data types and input elements such as text, numbers, images, and more.

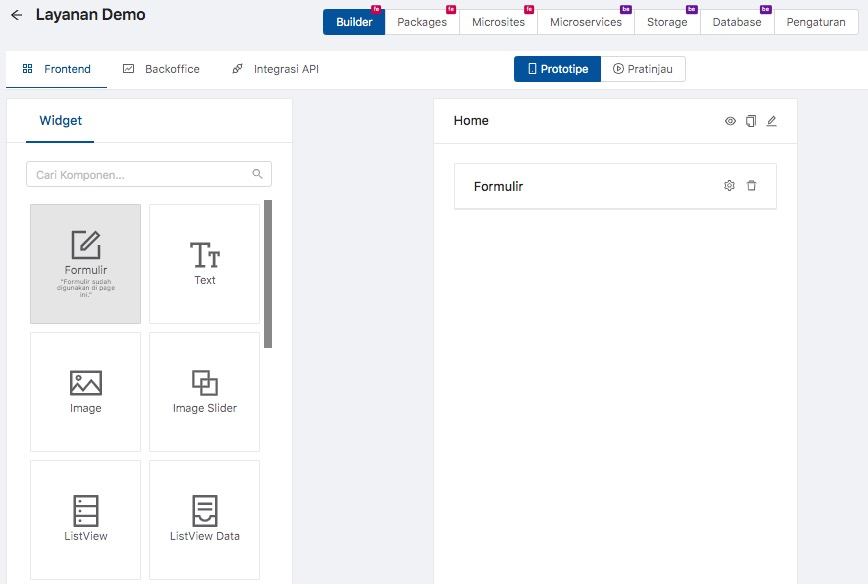

Ensure you have already created a new service and are on the frontend builder page, as shown in the image below:

<figure><img src="https://3956894092-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEWmc9IGdzSxwzSIEHL6y%2Fuploads%2Fgit-blob-d301ceba85d522b205c30648548e9d2dad701110%2Fimage%20(19)%20(1)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

1. Drag and drop the **“Form”** widget.
2. Select and click the **“Configuration”** button on the form widget.

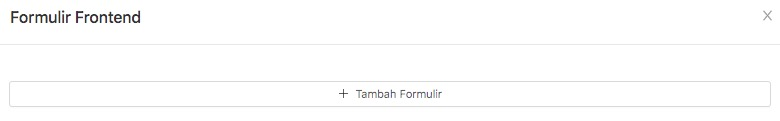

3. A screen will appear as shown in the image below:

   <div><figure><img src="https://github.com/QTN-DEV/quantumbyte-doc/blob/main/.gitbook/assets/Screen%20Shot%202024-06-05%20at%2016.01.01.jpg" alt=""><figcaption></figcaption></figure> <figure><img src="https://3956894092-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEWmc9IGdzSxwzSIEHL6y%2Fuploads%2Fgit-blob-a177b192bb21f79c98801fa5230d819a25d322e3%2Fimage%20(1)%20(1)%20(1)%20(1)%20(1)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure></div>
4. Select and click **“Add Form”**.

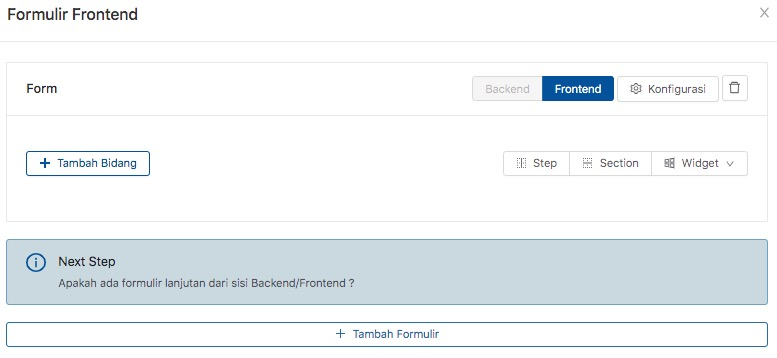

5. The display will then change as shown in the image below:

<div><figure><img src="https://github.com/QTN-DEV/quantumbyte-doc/blob/main/.gitbook/assets/Screen%20Shot%202024-06-05%20at%2016.03.21%20(1).jpg" alt=""><figcaption></figcaption></figure> <figure><img src="https://3956894092-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEWmc9IGdzSxwzSIEHL6y%2Fuploads%2Fgit-blob-eb49620543fa51a2ba0b8dd8f654bc163e827d43%2Fimage%20(2)%20(1)%20(1)%20(1)%20(1)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure></div>

6. To add a field column, select and click **“Add Field.”**
7. A new field will appear.

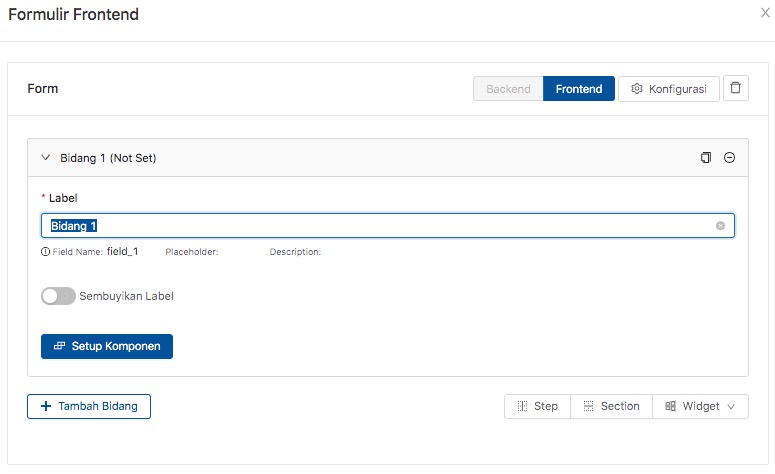

8. Click the newly added field.

<div><figure><img src="https://github.com/QTN-DEV/quantumbyte-doc/blob/main/.gitbook/assets/Screen%20Shot%202024-06-05%20at%2016.04.46.jpg" alt=""><figcaption></figcaption></figure> <figure><img src="https://3956894092-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEWmc9IGdzSxwzSIEHL6y%2Fuploads%2Fgit-blob-7dde83ddd5cfe2e126aeaef601a5edaa626c9ed0%2Fimage%20(3)%20(1)%20(1)%20(1)%20(1)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure></div>

6. In the **Label** column, enter the name of the field you want to create.

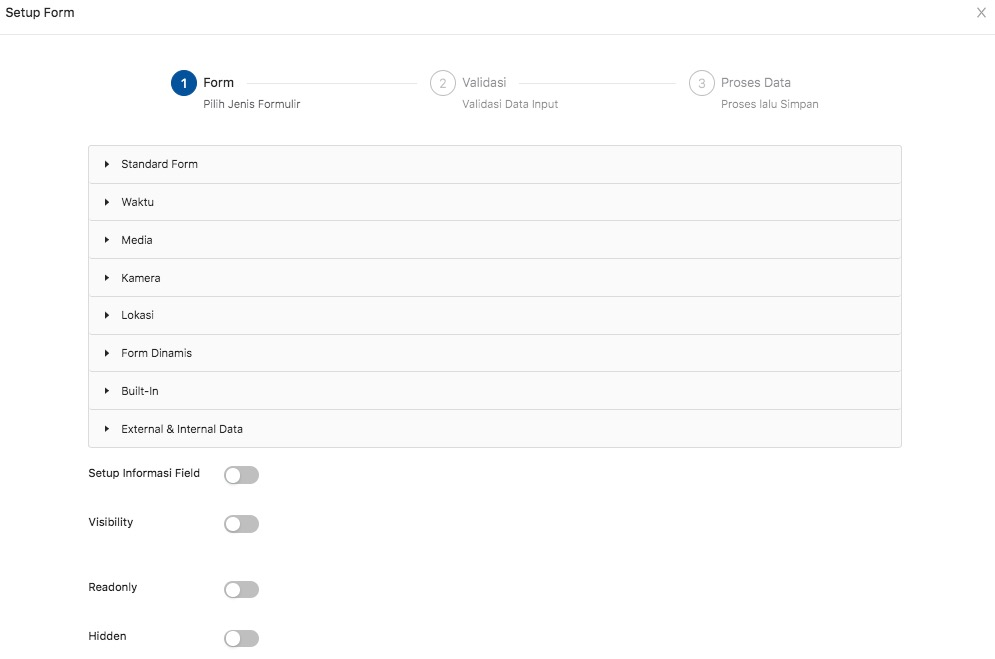

7. Next, select and click the **“Setup Component”** button and a form setup section will appear, allowing you to configure the form field.

<div><figure><img src="https://github.com/QTN-DEV/quantumbyte-doc/blob/main/.gitbook/assets/Screen%20Shot%202024-06-05%20at%2016.05.39.jpg" alt=""><figcaption></figcaption></figure> <figure><img src="https://3956894092-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FEWmc9IGdzSxwzSIEHL6y%2Fuploads%2Fgit-blob-f3b80d82983fd1b549baec16823a9b0d517e6270%2Fimage%20(4)%20(1)%20(1)%20(1)%20(1)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure></div>

8. Select and adjust the **form type** to be used (**Standard Form**, **Time**, **Media**, **Camera**, **Location**, **Dynamic**, **Built-in**, or **External/Internal Data**).
